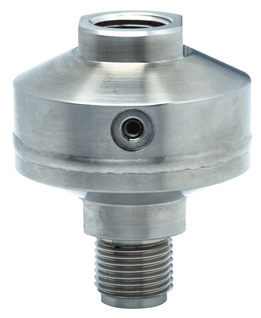

Features : Economical and light weight All welded construction Laser welded diaphragm Specification Details Range type : -1…0 bar up to 0…600 bar Wetted parts : AISI 316L SS, Monel, Hastelloy C (others on request) Sealing fluid : Silicon DC 200 (-40…205°C) (others on request) Protection on wetted parts : Not available Assembly : Direct/Remote

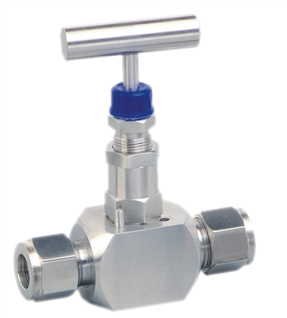

Features : Isolation valve Back seating to prevent stem blow-out Tube end connections Specification Details Stem type : Hard seated stem Wetted parts : AISI 316 SS, AISI 316L SS, Monel Stem : Conical metal tip Max. working pressure : 413.7 bar (6000 psi) Max. working temperature : 240°C

Features : Economical version Leak point reduction Specification Details Stem type : Bolted bonneted Wetted parts : AISI 316 SS, AISI 316L SS, Monel Stem : Single bonneted Max. working pressure : 206.85 bar (3000 psi) Max. working temperature : 240°C

Features : Multi-port valve Back seating to prevent stem blow-out Isolation Test & Drain Specification Details Stem type : Hard seated stem Wetted parts : AISI 316 SS, AISI 316L SS, Monel Stem : Conical metal tip Max. working pressure : 413.7 bar (6000 psi) Max. working temperature : 240°C

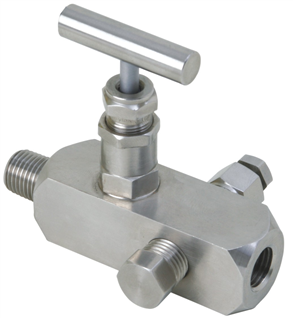

Features : Block & Bleed valve Back seating to prevent stem blow-out M8 x 1mm (F) plugged drain Specification Details Stem type : Hard seated stem Wetted parts : AISI 316 SS, AISI 316L SS, Monel Stem : Conical metal tip Max. working pressure : 413.7 bar (6000 psi) Max. working temperature : 240°C

Features : Easy replacement Economical version Rigid & easy installation Adjustable counter weight Specification Details Material of Wetted parts : Polypropylene Switch : Micro switch, 1 SPDT, 16A / 250VAC Enclosure protection : IP 68 Extension cable : PVC Min. Specific Gravity : 0.8

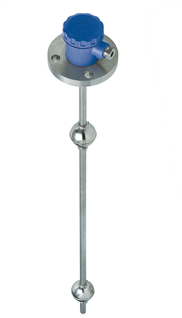

Features : Top mounting Easy replacement Multi-point switching Rigid & easy installation Specification Details Material of Wetted parts : AISI 316 SS Process connection : Flanged / Threaded Process Enclosure : Pressure die-cast Aluminum, IP 65 Switch Type : Reed switch (SPDT), 0.5A / 250VAC Probe length : 200 mm up to 3000 mm

Features : Side or Top mounting Rigid & easy installation High temperature version Point level switching (HI/LO) Adjustable differential version Specification Details Material of Wetted parts : AISI 316 SS Process connection : Flanged / Threaded Process Enclosure : Pressure die-cast Aluminum, IP 65 Switch Type : Micro switch (SPDT), 5A / 250VAC

Features : Tri-clamp connections Mineral insulated Exchangeable insert Spring loaded design Specification Details Element : Pt-100, class A / Pt-100, class B (Others on request) No. of Sensors : Simplex / Duplex Wire combination : 2 Wire / 3 Wire / 4 Wire Sheath material : AISI 316 SS / AISI 316L SS Sheath Diameter : 3.0 mm to 8.0 mm (Others on request)

Features : Integrated Protecting Tube Mineral insulated Transmitter mountable Exchangeable insert Spring loaded design Specification Details Element : Pt-100, class A / Pt-100, class B (Others on request) No. of Sensors : Simplex / Duplex with 2 or 3 or 4 Wire Sheath material : AISI 316 SS / AISI 316L SS Protecting tube material : AISI 304 SS / AISI 316 SS / AISI 316L SS Sheath Diameter : 3.0 mm to 8.0 mm (Others on request)

Features : Fixed extension Mineral insulated Exchangeable insert Spring loaded design Specification Details Element : Pt-100, class A / Pt-100, class B (Others on request) No. of Sensors : Simplex / Duplex Wire combination : 2 Wire / 3 Wire / 4 Wire Sheath material : AISI 316 SS / AISI 316L SS Sheath Diameter : 3.0 mm to 8.0 mm (Others on request)

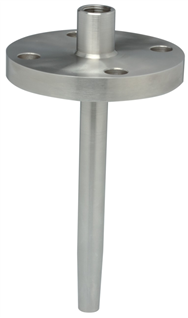

Features : Solid bar-stock drilled design 3 different shank styles Flanged process connection Optional Exotic materials Specification Details Shank form : Straight / Tapered / Stepped Material : AISI 304 SS, AISI 316 SS, Monel (Others on request) Process connection : ½” to 4″ flange sizes (Others on request) Immersion length : 50 mm to 1000 mm (Others on request)
