pressure gauge

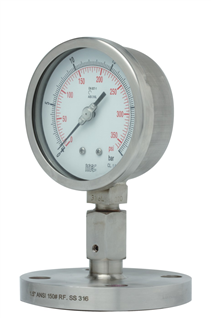

Features : Laser welded diaphragm Full welded construction Zero-leak path design Specification Details Dial size: DN100 / DN150 Range : -1…400 bar Process connection : 1½” RF 150# as per ANSI B16.5 Seal filling fluid : Silicon DC 200 Execution : Dry, IP 65 Other Products

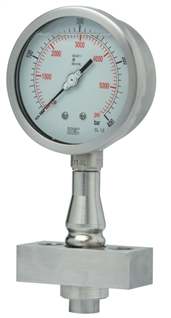

Features : Laser welded diaphragm Optional electric contacts Optional transmitter output Filled version Specification Details Dial size: DN100 Range : 0…160 bar, 0…250 bar, 0…400 bar, 0…600 bar Process connection : With mounting flange Seal filling fluid : Food grade oil Execution : Dampening liquid filled, glycerine

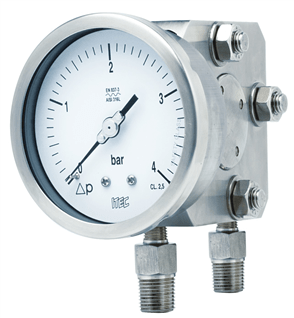

Features : All SS measuring system External Zero adjustment Electric contact version Dry / liquid filled Specification Details Accuracy : CL 2.5 Dial size : DN100 / DN125 / DN150 Range : 25 mbar…0…25 bar Process connection : ¼” NPT (F) x 2 Nos. Ingress protection : IP 65

Features : Compact design Migrated pressure chambers Static pressure up to 200 bar Specification Details Accuracy : ± 2 % (Ascending) Dial size : DN63 / DN100 / DN150 Range : 0…0.25…70 bar Process connection : ¼” NPT (F) x 2 Nos Ingress protection : IP 65

Features : Inert gas filled expansion Filled versions Elbow mounting Bi-metal compensation Specification Details Dial size : DN100 / DN125 / DN150 / DN250 Range : -100…600°C Assembly : Direct or Remote Stem size : 6.0 mm to 12 mm Process connection type : Fixed / Adjustable connection

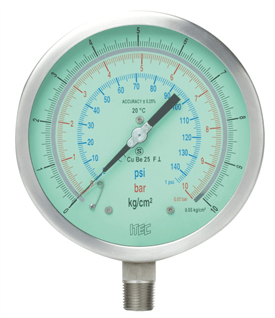

Features : Precision measuring system High resolution dial markings Knife Edge pointer Anti-parallax mirror band Jewel bearing movement Specification Details Dial size: DN 150 / DN250 Range : -1…700 bar Process connection : ½” NPT (M) / ½” BSP (M) Carrying case : Pine wood carrying case Certificate : Calibration cert. traceable to Nat’l & Int’l standards

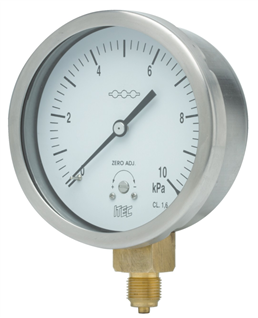

Features : Compact design Stainless steel case Zero adjustment on dial Low pressure application (<0.6 mbar) Specification Details Execution : Dry Dial size: DN63 / DN100 / DN125 / DN150 Range : -600…25…600 mbar Process connection : ½” NPT (M) / ½” BSP (M) Ingress protection : IP 54

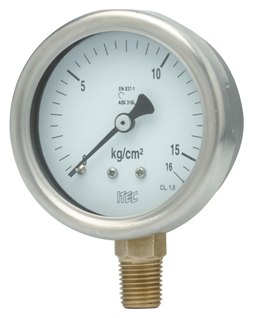

Features : Rugged construction Stainless steel case Dry / liquid filled Specification Details Dial size : DN50 / DN63 / DN80 / DN100 Ranges : -1…400 bar (DN50), -1…1,000 bar (DN63/DN80/DN100) Process connection : ¼” NPT (M) / ¼” BSP (M) Ingress protection : IP 65 Execution : Dry but fillable, glycerin

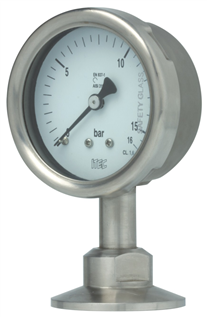

Features : Integrated gauge seal assembly Laser welded diaphragm Reduced vibration/pulsation Specification Details Dial size: DN50 / DN63 / DN100 Range : -1…40 bar Process connection : 1½” Sanitary connection Seal filling fluid : Glycerine [10°C to 150°C] Execution : Dry but fillable, glycerin

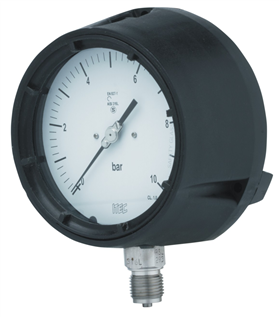

Features : Stabilized accuracy Solid front with full blow back Light weight Dry / liquid filled Specification Details Accuracy : Grade 2A (± 0.5%) Dial size : 4.5” Range : -1…0…1,600 bar Process connection : ½” NPT (M) / ½” BSP (M) Execution : Dry but fillable, glycerin, IP 65

Features : CE complied microswitch SS case & measuring system High repeatability Externally adjustable set points Specification Details Dial size : DN100 / DN150 Range : -1…0…600 bar Switch type : 1 SPDT, 250VAC/15A, 24VDC/2A Electrical termination : 4 pin PG 13.5 connector Execution : Dry, IP 44

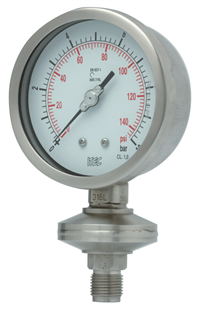

Features : Laser welded diaphragm Full seal-welded seal (Monobloc design) Specification Details Dial size: DN100 Range : 4…70 bar Process connection : ½” NPT (M) / ½” BSP (M) Seal filling fluid : Silicon DC 200 Execution : Dry, IP 65
