Features : Laser welded diaphragm Full welded construction Zero-leak path design Specification Details Dial size: DN100 / DN150 Range : -1…400 bar Process connection : 1½” RF 150# as per ANSI B16.5 Seal filling fluid : Silicon DC 200 Execution : Dry, IP 65 Other Products

Features : Laser welded diaphragm Optional electric contacts Optional transmitter output Filled version Specification Details Dial size: DN100 Range : 0…160 bar, 0…250 bar, 0…400 bar, 0…600 bar Process connection : With mounting flange Seal filling fluid : Food grade oil Execution : Dampening liquid filled, glycerine

Features : All SS measuring system External Zero adjustment Electric contact version Dry / liquid filled Specification Details Accuracy : CL 2.5 Dial size : DN100 / DN125 / DN150 Range : 25 mbar…0…25 bar Process connection : ¼” NPT (F) x 2 Nos. Ingress protection : IP 65

Features : Compact design Migrated pressure chambers Static pressure up to 200 bar Specification Details Accuracy : ± 2 % (Ascending) Dial size : DN63 / DN100 / DN150 Range : 0…0.25…70 bar Process connection : ¼” NPT (F) x 2 Nos Ingress protection : IP 65

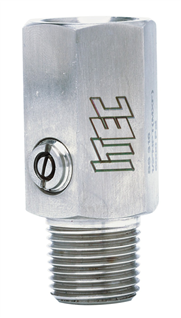

Features : All SS construction Adjustable needle design Specification Details Material : AISI 316 SS/ Monel / Hastelloy C (Others on request) Gaskets / Seals : Viton Maximum working pressure : 400 bar Maximum working temperature : 180°C

Features : 3 different loop designs Tig welded & hydro-tested Seamless pipes construction Threads welded Max working pressure 160 bar Max working temperature 400°C Specification Details Type : Coiled / Pig-tail / U-type Material : AISI 316 SS / AISI 316L SS / AISI 304 SS

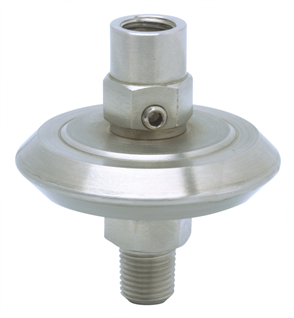

Features : Economical version All SS construction Compact welded body design For 50 mm & 63 mm gauges Specification Details Range type : -1…21 bar Wetted parts : AISI 316L SS Sealing fluid : Silicon DC 200 (-40…205°C) Process connection : ¼”NPT (M) Assembly : Direct

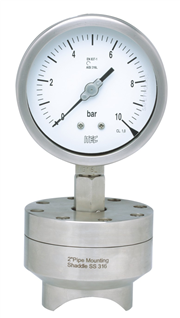

Features : Saddle type flange Laser welded diaphragm Optional exotic materials Specification Details Range type : -1…0 bar up to 0…100 bar Wetted parts : AISI 316L SS Sealing fluid : Silicon DC 200 (-40…205°C) (others on request) Suitable to : 2.5″ to 14″ Assembly : Direct

Features : Quick connect/disconnect Laser welded flush diaphragm Mating parts available in accessories Specification Details Range type : 0…1.6 to 0…40 bar Standards : DIN 11854, SMS, RTJ/APV, IDF/ISS Wetted parts : AISI 316L SS Sealing fluid : Glycerine [10°C to 150°C] Assembly : Direct / Remote

Features : Laser welded diaphragm Optional flushing ring For flanges 1½” and above Optional exotic materials Specification Details Range type : -1…0 bar up to 0…250 bar Wetted parts : AISI 316L SS, Monel, Hastelloy C (others on request) Sealing fluid : Silicon DC 200 (-40…205°C) (others on request) Protection on wetted parts : Optional up to 40 bar max. Assembly : Direct/Remote

Features : Large volume type design Flushed diaphragm Laser welded diaphragm Optional flushing ring For flanges 1½” and above Optional exotic materials Specification Details Range type : -1…0 bar up to 0…250 bar Wetted parts : AISI 316L SS, Monel, Hastelloy C (others on request) Sealing fluid : Silicon DC 200 (-40…205°C) (others on request) Protection on wetted parts : Optional Assembly : Direct/Remote

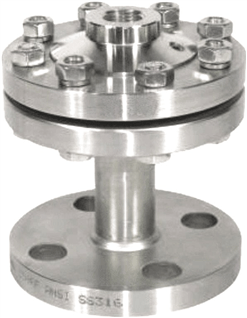

Features : ” I ” section extension type For flanges below 1½” size Optional exotic materials Specification Details Range type : -1…0 bar up to 0…400 bar Wetted parts : AISI 316L SS, Monel, Hastelloy C (others on request) Sealing fluid : Silicon DC 200 (-40…205°C) (others on request) Protection on wetted parts : Optional Assembly : Direct/Remote
