pressure switches

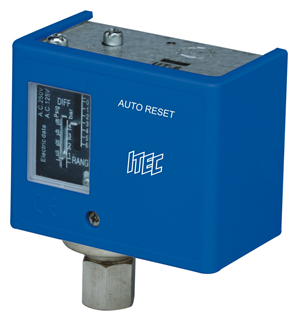

Features : Compact & Economical Field adjustable set point Scale provided Auto Reset Specification Details Repeatability : ± 2% F.S. Sensing Elements : Phosphor Bronze Bellow Switch : 1 SPDT, 15A, 220 VAC / 10A, 24 VDC Mounting : Bottom / Panel Enclosure Material : Steel (plated) with Plastic cover

Features : Fix / adjustable differential Field adjustable set point Weatherproof to IP 67 Internal set point lock Rigid construction Scale provided Specification Details Repeatability : ± 1% F.S. Sensing Elements : AISI 316 SS, Piston Switch : 1 SPDT, 15A, 250 VAC / 2A, 24 VDC (Others on request) Mounting : Bottom / Panel Enclosure Material : Aluminum pressure die cast

Features : Fix / adjustable differential Field adjustable set point Weatherproof to IP 67 Internal set point lock Rigid construction Scale provided Specification Details Repeatability : ± 0.5% F.S. Sensing Elements : AISI 316 SS, Diaphragm Switch : 1 SPDT, 15A, 250 VAC / 2A, 24 VDC (Others on request) Mounting : Bottom / Panel Enclosure Material : Aluminum pressure die cast

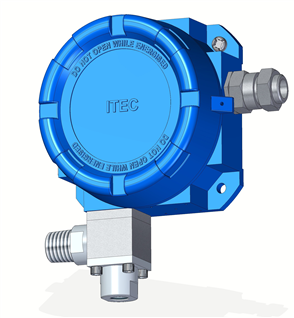

Features : Fix / adjustable differential Field adjustable set point Flameproof EEx IIA IIB IIC Ingress Protection IP 65 Internal set point lock Specification Details Repeatability : ± 0.5% F.S. Sensing Elements : AISI 316 SS, Diaphragm Switch : 1 SPDT, 15A, 250 VAC / 2A, 24 VDC (Standard) Mounting : Bottom / Panel Enclosure Material : Aluminum pressure die cast

Features : Fix / adjustable differential Field adjustable set point Flameproof EEx IIA IIB IIC Ingress Protection IP 65 Internal set point lock Specification Details Repeatability : ± 0.5% F.S. Sensing Elements : AISI 316 SS, Diaphragm Switch : 1 SPDT, 15A, 250 VAC / 2A, 24 VDC (Others on request) Mounting : Bottom / Panel Enclosure Material : Aluminum pressure die cast
