Features : Solid bar-stock drilled design 3 different shank styles Threaded process connection Specification Details Shank form : Straight / Tapered / Stepped Material : AISI 304 SS, AISI 316 SS, Monel (Others on request) Process connection : ½” to 2″ (Others on request) Immersion length : 50 mm to 1000 mm

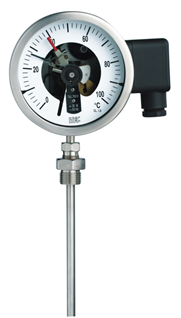

Features : Inert gas filled expansion Filled versions Bi-metal compensation Specification Details Dial size : DN100/DN150 Range : -100…800°C Stem size : 6.0 mm to 12 mm Assembly : Direct or Remote Switch : 1NO, 1NC, 1NO+1NC, SPDT, DPDT

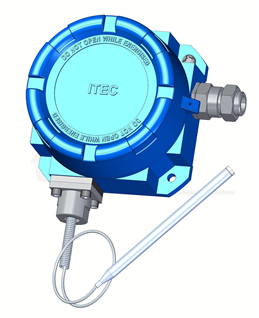

Features : Inert gas filled expansion Various type of Microswitches Flameproof EEx IIA IIB IIC Ingress Protection IP 65 Specification Details Repeatability : ± 2% F.S. Sensing Elements : AISI 316 SS Enclosure Material : Aluminum pressure die cast Assembly : Direct or Remote Switch : 1 SPDT, 15A, 250 VAC / 2A, 24 VDC (Others on request)

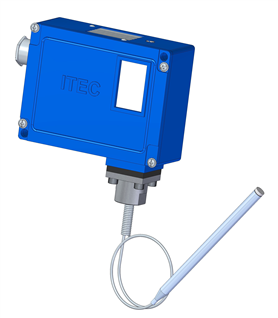

Features : Inert gas filled expansion Various type of Microswitches Weatherproof versions Specification Details Dial size : ± 2% F.S. Range : AISI 316 SS Assembly : Direct or Remote Enclosure Material : Aluminum pressure die cast Switch : 1 SPDT, 15A,250 VAC / 2A,24 VDC (Others on request)

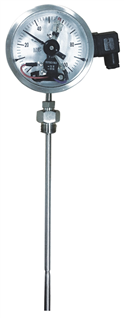

Features : Inert gas filled expansion Filled versions Bi-metal compensation Specification Details Dial size : DN100/DN150 Range : -100…800°C Stem size : 6.0 mm to 12 mm Assembly : Direct or Remote Switch : 1NO, 1NC, 1NO+1NC, SPDT, DPDT

Features : Ceramic Insulator & Protection tube Exchangeable insert Transmitter mountable Adjustable / Fixed connection Single / Double protecting tube Specification Details Element : K / N / R / S / B Element type : With Ceramic Insulators / Mineral Insulated No. of sensors : Simplex / Duplex / Triplex Protection tube material : KER – 610 / KER 710 (Others on request) Sheath material : Inconel 600

Features : Adjustable extension Mineral insulated Transmitter mountable Exchangeable insert Spring loaded design Specification Details Element : K / J / N / E / T / R / S / B Accuracy : Standard to ISA & ANSI MC96.1 No. of sensors : Simplex / Duplex / Triplex Hot junction : Ungrounded / Grounded Sheath material : AISI 316 SS / AISI 310 SS / Inconel 600

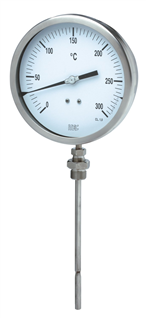

Features : Inert gas filled expansion Filled versions Bi-metal compensation Specification Details Dial size : DN100 / DN125 / DN150 / DN250 Range : -100…600°C Assembly : Direct or Remote Stem size : 6.0 mm to 12 mm Process connection type : Fixed / Adjustable connection

Features : Inert gas filled expansion Filled versions Elbow mounting Bi-metal compensation Specification Details Dial size : DN100 / DN125 / DN150 / DN250 Range : -100…600°C Assembly : Direct or Remote Stem size : 6.0 mm to 12 mm Process connection type : Fixed / Adjustable connection

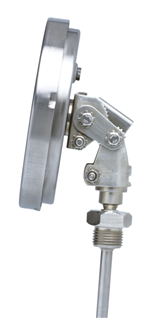

Features : Bimetal helix system Hermetically sealed Every angle entry External zero adjustment Specification Details Dial size : DN80 / DN100 / DN125 / DN150 Range : -100…600°C Mounting pattern : Every Angle mounting, Centre Back connection Stem size : 6.0 mm to 12 mm Process connection type : Fixed / Adjustable connection

Features : Bimetal helix system Hermetically sealed Stem length max 1.5 Mtr. Optional External Zero adjustment Specification Details Dial size : DN50 / DN63 / DN80 / DN100 / DN125 / DN150 Range : -100…600°C Mounting pattern : Direct Bottom / Back connection Stem size : 6.0 mm to 12 mm Process connection type : Fixed / Adjustable connection

Features : Compact & Economical Field adjustable set point Scale provided Auto Reset Specification Details Repeatability : ± 2% F.S. Sensing Elements : Phosphor Bronze Bellow Switch : 1 SPDT, 15A, 220 VAC / 10A, 24 VDC Mounting : Bottom / Panel Enclosure Material : Steel (plated) with Plastic cover
