pressure gauge

Features : Laser welded diaphragm Full welded construction Zero-leak path design Specification Details Dial size: DN100 / DN150 Range : -1…400 bar Process connection : 1½” RF 150# as per ANSI B16.5 Seal filling fluid : Silicon DC 200 Execution : Dry, IP 65

Features : Laser welded diaphragm Optional electric contacts Optional transmitter output Filled version Specification Details Dial size: DN100 Range : 0…160 bar, 0…250 bar, 0…400 bar, 0…600 bar Process connection : With mounting flange Seal filling fluid : Food grade oil Execution : Dampening liquid filled, glycerine

Features : All SS measuring system External Zero adjustment Electric contact version Dry / liquid filled Specification Details Accuracy : CL 2.5 Dial size : DN100 / DN125 / DN150 Range : 25 mbar…0…25 bar Process connection : ¼” NPT (F) x 2 Nos. Ingress protection : IP 65

Features : Compact design Migrated pressure chambers Static pressure up to 200 bar Specification Details Accuracy : ± 2 % (Ascending) Dial size : DN63 / DN100 / DN150 Range : 0…0.25…70 bar Process connection : ¼” NPT (F) x 2 Nos Ingress protection : IP 65

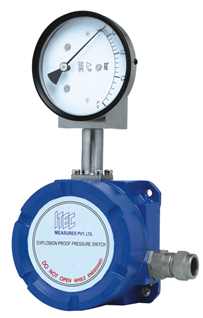

Features : Diaphragm operated Compact design Isolated pressure chambers Static pressure up to 100 bar Isolated switch assembly Specification Details Accuracy : DN63 / DN100 / DN150 Dial size : 0…75 mbar up to 0…4 bar Range : NEMA 4X, IP66, IP67 Enclosure rating : ATEX & FM approved Ex class I, II & III Switch : 1 SPST / 2 SPDT, 230VAC/0.5A

Features : Single Side static up to 200 bar sustainable ATEX certified External Zero Adjustment Electric contact versions Dry / liquid filled Specification Details Accuracy : CL 1.6 (Standard) Dial size : DN100/DN150 Range : 0…60 mbar up to 0…40 bar Process connection : ¼” NPT (F) x 2 Nos. Ingress protection : IP 65 – EN 60529 / IEC 529

Features : Diaphragm operated Compact design Isolated pressure chambers Static pressure up to 100 bar Specification Details Accuracy : ± 2 % (Ascending) Dial size : DN63 / DN100 / DN150 Range : 0…75 mbar up to 0…4 bar Mounting pattern : In-line connection Process connection : IP 65

Features : All SS measuring system Static pressure 40 bar max. External Zero Adjustment Electric contact versions Suitable for direct valve mounting Specification Details Accuracy : ±1.0 of FS (1 bar & above), ±1.6 of FS (below 1 bar) Dial size : DN150 Range : 0…100 mbar to 0…16 bar Process connection : ½” NPT (M) x 2 Nos. Ingress protection : IP 65

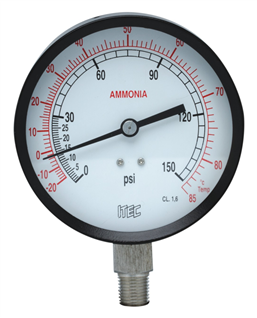

Features : Economical version SS measuring system Compact case Dry execution Specification Details Dial size : DN63 / DN100 Ammonia Ranges : -1…12.5 bar, -1…16 bar, -1…25 bar Ammonia Ranges : -30″Hg…150 psi, -30″Hg…300 psi, 0…300 psi Mounting pattern : Direct, Bottom connection Process connection : ¼” NPT (M) / ¼” BSP (M) Execution : Dry

Features : All SS measuring system Socket-case direct welded CE marking Dry / liquid filled Specification Details Dial size : DN100 / DN150 Range : -1…0…1,600 bar Process connection : ½” NPT (M) / ½” BSP (M) Ingress protection : IP 54 / IP 65 Execution : Dry / Dry but fillable, glycerin

Features : External zero adjustment Solid front with full blow back All stainless steel system Dry / liquid filled Specification Details Repeatability : DN63 Sensing Elements : -1…1,000 bar Process connection : ¼” NPT (M) / ¼” BSP (M) Ingress protection : IP 65 Execution : Dry but fillable, glycerin

Features : External zero adjustment Solid front with full blow back All stainless steel system Dry / liquid filled CE marking Specification Details Repeatability : DN100 / DN150 Sensing Elements : -1…0…1,600 bar Process connection : ½” NPT (M) / ½” BSP (M) Zero adjustment : External screw with locking mechanism Execution : Dry but fillable, glycerin
